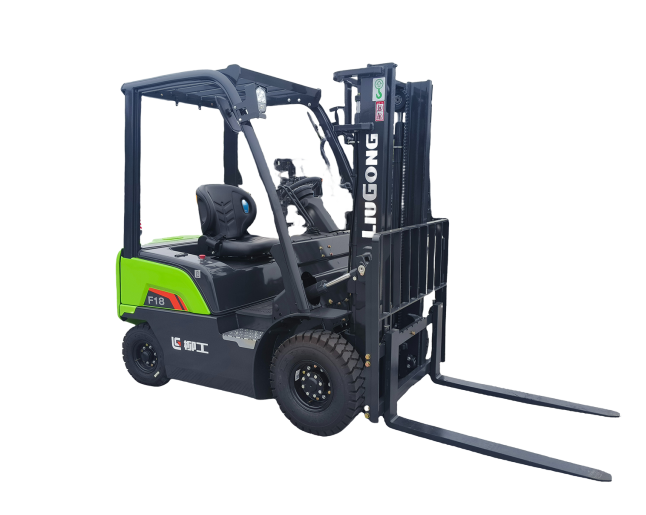

LiuGong Battery Forklift
Model: CPD20LSpecifications
| Battery | 80V / 150Ah |
| Battery Type | Lithium-ion Battery |
| Rated Capacity | 1800 kg |
| Load Center | 500 mm |
| Std Mast | 2-Stage |
| Lift Height | 3000 mm |
Performance
| Travel Speed | 17 / 18 km/h |
| Lift Speed | 360 / 450 mm/s |
| Lowering Speed | 500 / 490 mm/s |
| Max. Gradeability | 15 / 20 % |
| Max. Traction Force | 8815 N |
Weight
| Service Weight | 3045 kg |
| Axle Load (Loaded) | Front 4511 / Rear 534 kg |
| Axle Load (Unloaded) | Front 1239 / Rear 1806 kg |
Chassis
| Length to Fork Face | 2235 mm |
| Overall Width | 1136 mm |
| Overall Guard Height | 2096 mm |
| Turning Radius | 1990 mm |
| Ground Clearance | 95 / 100 mm |
Mast
| Max Fork Height | 3000 mm |
| Carriage Width | 1040 mm |
| Fork Spread | 284 / 1040 mm |
| Fork Dimensions | 40 x 122 x 920 mm |
Tires
| Tire Type | Solid |
| Wheel Configuration | 2.0 / 2.0 |
| Wheelbase | 1430 mm |
| Tire Size (Front / Rear) | 6.5-10 NHS / 5.0-8 NHS |
