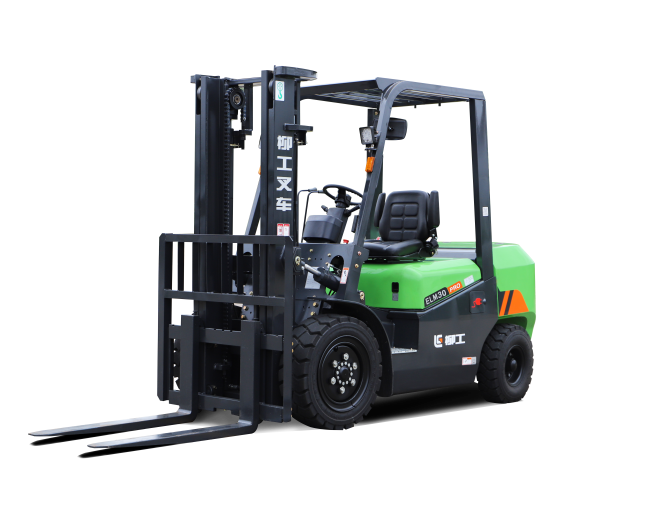

LiuGong Battery Forklift
Model: CPD30Specifications
| Battery | 80V / (280 / 405 / 450) Ah |
| Battery Type | Lithium-ion Battery |
| Rated Capacity | 3000 kg |
| Load Center | 500 mm |
| Std Mast | 3-Stage |
| Lift Height | 4500 mm |
Performance
| Travel Speed | 15 / 16 km/h |
| Lift Speed | 350 / 430 mm/s |
| Lowering Speed | 500 / 480 mm/s |
| Max. Gradeability | 17 / 20 % |
| Max. Traction Force | 15125 N |
Weight
| Service Weight | 4371 kg |
| Axle Load (Loaded) | Front 6662 / Rear 709 kg |
| Axle Load (Unloaded) | Front 2000 / Rear 2371 kg |
Chassis
| Length to Fork Face | 2720 mm |
| Overall Width | 1225 mm |
| Overall Guard Height | 2150 mm |
| Turning Radius | 2450 mm |
| Ground Clearance | 135 / 150 mm |
Mast
| Max Fork Height | 4500 mm |
| Carriage Width | 1100 mm |
| Fork Spread | 272 / 1072 mm |
| Fork Dimensions | 45 x 122 x 1070 mm |
Tires
| Tire Type | Pneumatic |
| Wheel Configuration | 2.0 / 2.0 |
| Wheelbase | 1760 mm |
| Tire Size (Front / Rear) | 28x9-15-14PR / 6.5-10-10PR |
