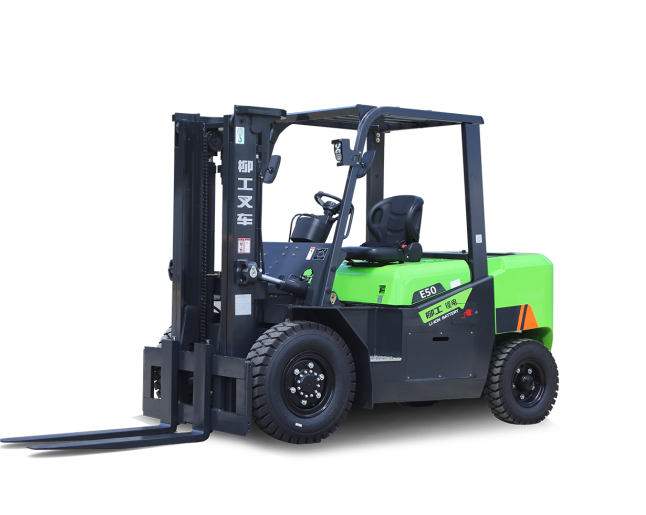

LiuGong Battery Forklift
Model: CPD50LSpecifications
| Battery | 80V / (560 / 690) Ah |
| Battery Type | Lithium-ion Battery |
| Rated Capacity | 5000 kg |
| Load Center | 500 mm |
| Std Mast | 3-Stage |
| Lift Height | 3000 mm |
Performance
| Travel Speed (Full Load / Unloaded) | 18 / 19 km/h |
| Lift Speed (Full Load / Unloaded) | 400 / 500 mm/s |
| Lower Speed (Full Load / Unloaded) | 520 / 480 mm/s |
| Max. Traction Force | 23500 N |
| Max. Gradeability | 18 / 26 % |
Weight
| Service Weight | 6580 kg |
| Axle Load (Loaded) | Front 10210 / Rear 1370 kg |
| Axle Load (Unloaded) | Front 2710 / Rear 3870 kg |
Chassis
| Length to Fork Face | 3230 mm |
| Overall Width | 1493 mm |
| Overall Guard Height | 2350 mm |
| Turning Radius | 2930 mm |
| Ground Clearance | 165 / 230 mm |
Mast
| Max Fork Height | 3000 mm |
| Carriage Width | 1424 mm |
| Fork Spread | 300 / 1380 mm |
| Fork Dimensions | 50 x 150 x 1070 mm |
Tires
| Tire Type | Solid |
| Wheel Configuration | 2.0 / 2.0 |
| Wheelbase | 2100 mm |
| Tire Size (Front / Rear) | 300-15-18PR / 7.0-12-12PR |
