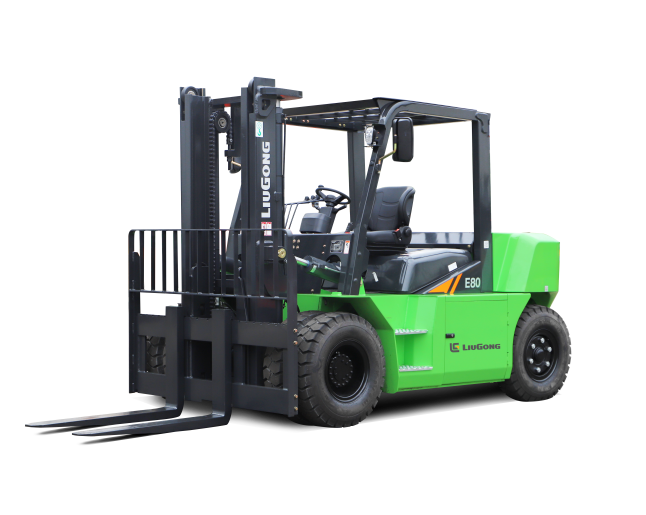

LiuGong Battery Forklift
Model: CPD80Specifications
| Battery | 308V / 228Ah |
| Battery Type | Lithium-ion Battery |
| Rated Capacity | 8000 kg |
| Load Center | 600 mm |
| Std Mast | 2-Stage |
| Lift Height | 3000 mm |
Performance
| Travel Speed | 25 / 26 km/h |
| Lift Speed | 510 / 530 mm/s |
| Lowering Speed | 450 / 400 mm/s |
| Max. Traction Force | 27 / 25 kN |
Weight
| Service Weight | 10860 kg |
| Axle Load (Loaded) | Front 16582 / Rear 2353 kg |
| Axle Load (Unloaded) | Front 4392 / Rear 6468 kg |
Chassis
| Length to Fork Face | 3561 mm |
| Overall Width | 2020 mm |
| Overall Guard Height | 2428 mm |
| Turning Radius | 3350 mm |
| Ground Clearance | 200 / 215 mm |
Mast
| Max Fork Height | 3000 mm |
| Carriage Width | 1845 mm |
| Fork Spread | 300 / 1840 mm |
| Fork Dimensions | 65 x 150 x 1220 mm |
Tires
| Tire Type | Pneumatic |
| Wheel Configuration | 4.0 / 2.0 |
| Wheelbase | 2300 mm |
| Tire Size (Front / Rear) | 8.25-15-16PR / 8.25-15-16PR |
