LiuGong Reach Stackers

LiuGong Reach Stackers are purpose-built for high-capacity container handling at ports, intermodal terminals, rail yards, and logistics hubs. Available in both diesel and fully electric variants, these machines combine powerful performance, precision spreader technology, and robust construction to maximise container yard throughput while keeping operating costs under control.

At Global Forklifts and MHE Solutions, we supply LiuGong Reach Stackers capable of handling ISO 20ft, 40ft, and 45ft containers across multiple stacking rows and up to five tiers high. Our available models are:

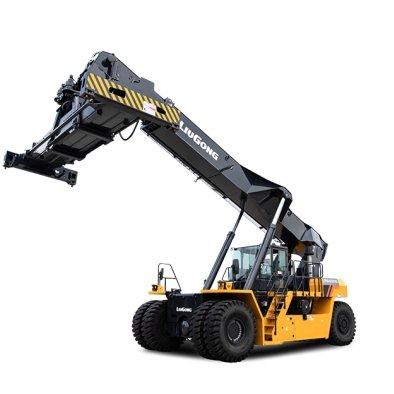

Engine & Drivetrain

• Cummins X12 engine rated at 261 kW / 2100 rpm for consistent heavy-duty performance
• Maximum torque of 1830 Nm at 1400 rpm for powerful low-speed load handling
• Euro III emission compliant — suitable for port and terminal environments
• DANA TE30 automatic transmission for smooth, responsive drive control
• Heavy-duty Kessler D102PL341 / Guangdong Fuhua IVWF-0432A0-1 drive axle

Performance & Capacity

• Rated carrying capacity of 45,000 kg with up to 5 container stacking tiers
• Boom maximum lifting height 15,100 mm; boom tilt range 0–60°
• Maximum lifting speed: 420 mm/s (unloaded) / 250 mm/s (full load)
• Maximum lowering speed: 360 mm/s (unloaded) / 300 mm/s (full load)
• Maximum travel speed: 25 km/h (unloaded) / 22 km/h (full load)
• Gradeability: 40% (unloaded) / 32% (full load); operating weight 72,000 kg

Dimensions & Manoeuvrability

• Overall length 11,311 mm; overall height 4,740 mm; wheelbase 6,000 mm
• Overall width 6,053–12,185 mm; minimum ground clearance 350 mm
• Front wheel tread 3,033 mm; rear wheel tread 2,798 mm
• Minimum turning radius 8,000 mm
• 20ft container aisle width 11,300 mm; 40ft container aisle width 13,600 mm
• Heavy-duty 18.00-25-40PR tyres for demanding yard conditions

Spreader (LDJ450)

• Rotation angle ±105° / -195° for accurate container placement in tight rows
• Tilt angle ±2° for fine load adjustment on uneven ground
• Spreader operating weight 8,100 kg
• Compatible with ISO 20ft and 40ft standard containers

Battery & Electrical System

• Lithium-ion battery at 580 V with capacity options of 525 kWh or 423 kWh
• Ultra-fast charging time of just 1.8 hours for minimal operational downtime
• Battery running time of up to 10 hours per full charge
• IP68 battery protection grade — fully sealed against dust and water ingress
• Active battery management with heating and water-cooling functions

Drive Motor

• Permanent Magnet Synchronous Motor (PMSM) — Work Class S9
• Rated / peak power: 157 kW / 310 kW for high responsiveness under load
• Rated / peak torque: 1,500 Nm / 2,400 Nm
• Rated / peak speed: 1,000 rpm / 2,800 rpm
• Independent water-cooling; IP67 motor protection degree
• Kessler heavy-duty drive axle for continuous heavy-load durability

Performance & Capacity

• Rated carrying capacity of 45,000 kg with up to 5 container stacking tiers
• Boom maximum lifting height 15,100 mm; boom tilt range 0–60°
• Maximum lifting speed: 420 mm/s (unloaded) / 250 mm/s (full load)
• Maximum lowering speed: 360 mm/s (unloaded) / 300 mm/s (full load)
• Maximum travel speed: 21 km/h (unloaded) / 15 km/h (full load)
• Gradeability: 21% (unloaded) / 14% (full load); operating weight 73,000 kg

Dimensions & Manoeuvrability

• Overall length 11,311 mm; overall height 4,777 mm; wheelbase 6,000 mm
• Overall width 6,053–12,185 mm; minimum ground clearance 350 mm
• Front wheel tread 3,033 mm; rear wheel tread 2,798 mm
• Minimum turning radius 8,000 mm
• 20ft container aisle width 11,300 mm; 40ft container aisle width 13,600 mm

Spreader (LDJ450)

• Side shift ±800 mm for precise container alignment without machine repositioning
• Rotation angle ±105° / -195°; tilt angle ±2°; spreader weight 8.1 T
• Compatible with ISO 20ft, 40ft, and 45ft containers

Whether you need the proven power of a diesel-driven machine or the sustainability benefits of a fully electric drivetrain, LiuGong Reach Stackers deliver the reliability, precision, and throughput to keep your container operations running at peak efficiency. Contact us to discuss which variant best suits your operational requirements.
