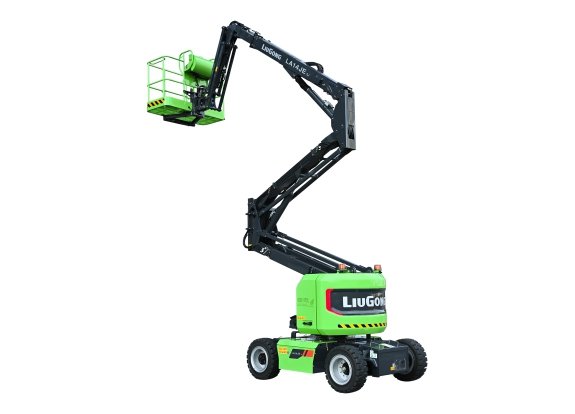

LiuGong Articulated Boom Lift

LiuGong Articulated Boom Lifts

LiuGong Articulated Boom Lifts are designed to access hard-to-reach elevated work areas with exceptional flexibility. Their articulating boom allows operators to manoeuvre over and around obstacles with precision, making them ideal for construction sites, industrial facilities, airports, warehouses, and infrastructure maintenance.

Powered by advanced lithium-ion battery technology, all three models in our range offer zero-emission operation, low noise levels, and fast recharge times — making them well-suited for both indoor and outdoor applications. Our available models are:

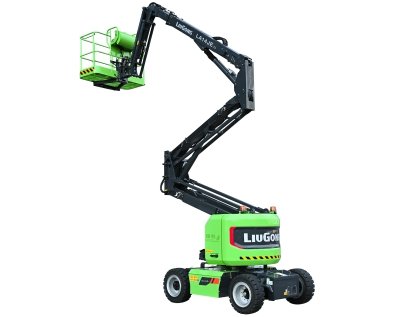

LiuGong LA14JE Articulated Boom Lift
LA14JE
16 mWorking Height
14 mPlatform Height
8.35 mOperating Range
51.2V / 304AhBattery
Enquire

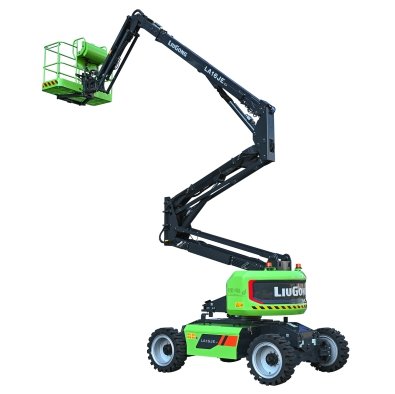

LiuGong LA16JE Articulated Boom Lift
LA16JE
17.8 mWorking Height
15.8 mPlatform Height
9.78 mOperating Range
51.2V / 304AhBattery
Enquire

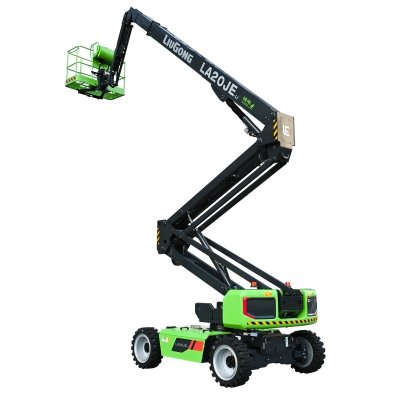

LiuGong LA20JE Articulated Boom Lift
LA20JE
22.2 mWorking Height
20.2 mPlatform Height
13.2 mOperating Range
48V / 460AhBattery
Enquire

Flexible Reach & Access

  • Articulating boom design enables work over and around obstacles with ease
  • Working heights from 16 m (LA14JE) up to 22.2 m (LA20JE) for versatile elevated access
  • Maximum horizontal operating range up to 13.2 m for wide coverage from a single position
  • Platform heights from 14 m to 20.2 m to suit a wide range of applications
  • 360° continuous turntable rotation for unrestricted swing in all directions

Electric Powertrain & Battery

  • Zero-emission lithium-ion battery operation — suitable for indoor and enclosed environments
  • LA14JE & LA16JE: 51.2 V / 304 Ah battery for consistent power through the shift
  • LA20JE: 48 V / 460 Ah high-capacity battery for extended runtime on heavy-duty tasks
  • Low noise operation reduces disruption in noise-sensitive work environments
  • Minimal maintenance requirements versus diesel-powered equivalents

Operator Safety & Comfort

  • Spacious platform with full-height guardrails and self-closing gate for operator safety
  • Intuitive proportional controls for smooth, precise boom and drive movements
  • Load sensing system with automatic cut-off to prevent overloading
  • Emergency lowering function accessible from ground level
  • Non-marking tyres available — ideal for polished floors and sensitive surfaces

Compact & Manoeuvrable Design

  • LA14JE overall dimensions 6.36 × 1.85 m — compact footprint for tight sites
  • LA16JE overall dimensions 7.2 × 2.3 m offering extended reach in a manageable frame
  • LA20JE overall dimensions 8.87 × 2.42 m for maximum reach capability
  • Four-wheel drive with oscillating axle for stable operation on uneven ground
  • Tight turning radius for easy navigation in congested work areas

LiuGong Articulated Boom Lifts combine the flexibility of an articulating arm with the efficiency of electric power, delivering reliable and safe elevated access across construction, maintenance, and industrial applications. Contact us to discuss which model is the right fit for your project requirements.
