LiuGong Telescopic Boom Lift

LiuGong Telescopic Boom Lifts

LiuGong Telescopic Boom Lifts deliver straight-line elevated access to heights ranging from 18 m up to 40.35 m, making them the preferred choice for large-scale construction, infrastructure maintenance, industrial facilities, and outdoor work at height. Available in both electric and diesel variants, the full range provides a solution for every operational environment — from emission-sensitive indoor sites to demanding outdoor applications.

Our available models are:

Electric Telescopic Boom Lifts
Electric

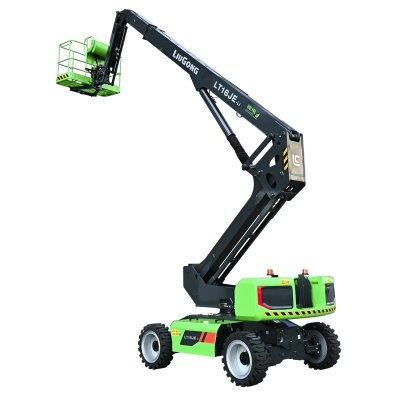

LT16JE
LT16JE
18.2 mWorking Height
16.2 mPlatform Height
11.9 mOperating Range
51.2V / 304AhBattery
8.44 × 2.3 mOverall L × W
Enquire

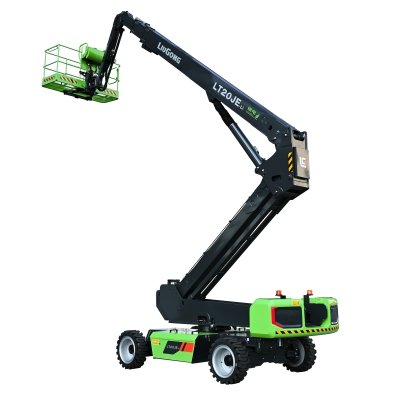

LT20JE
LT20JE
21.5 mWorking Height
19.5 mPlatform Height
14 mOperating Range
48V / 460AhBattery
10.2 × 2.42 mOverall L × W
Enquire

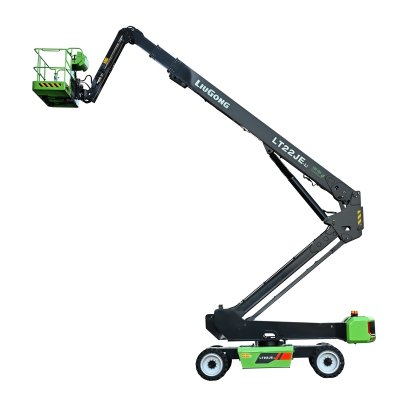

LT22JE
LT22JE
23.8 mWorking Height
21.8 mPlatform Height
16.3 mOperating Range
48V / 460AhBattery
9.5 × 2.42 mOverall L × W
Enquire
LT26JE
LT26JE
28.1 mWorking Height
26.1 mPlatform Height
19.88 mOperating Range
83.2V / 460AhBattery
11.03 × 2.44 mOverall L × W
Enquire

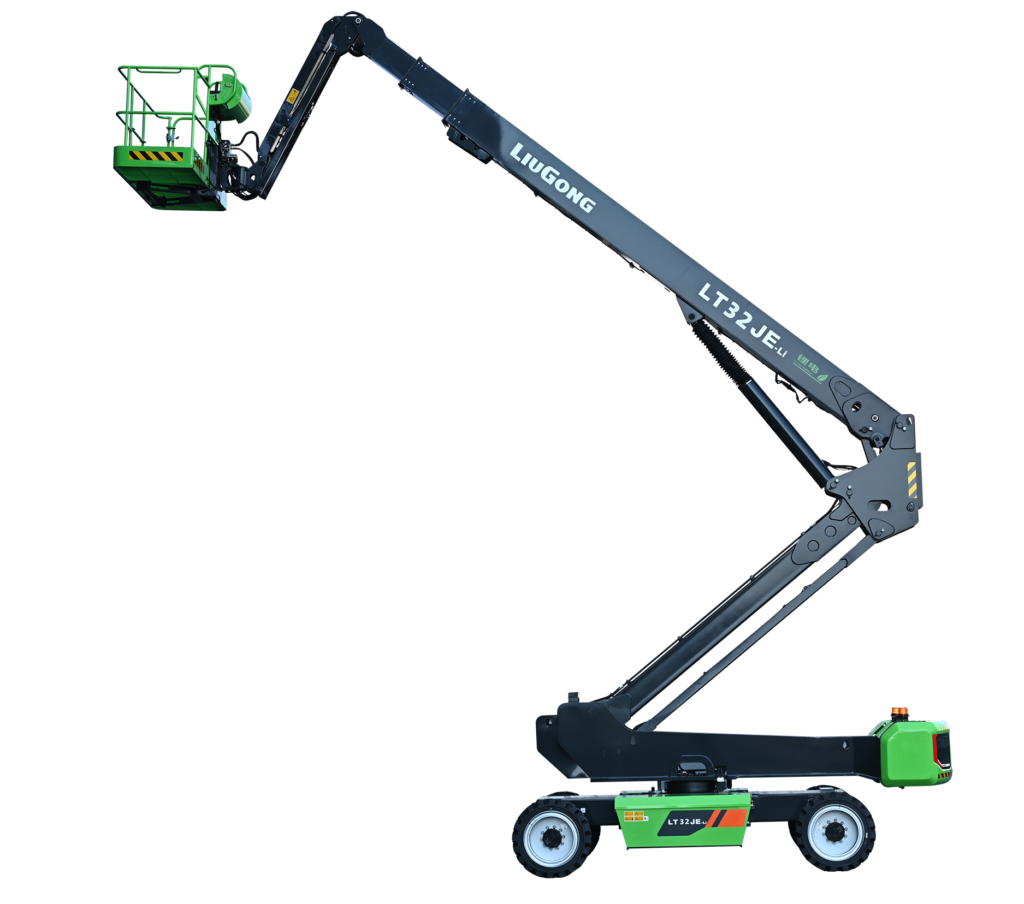

LT32JE
LT32JE
34 mWorking Height
32 mPlatform Height
21.8 mOperating Range
83.2V / 519AhBattery
11.76 × 2.44 mOverall L × W
Enquire

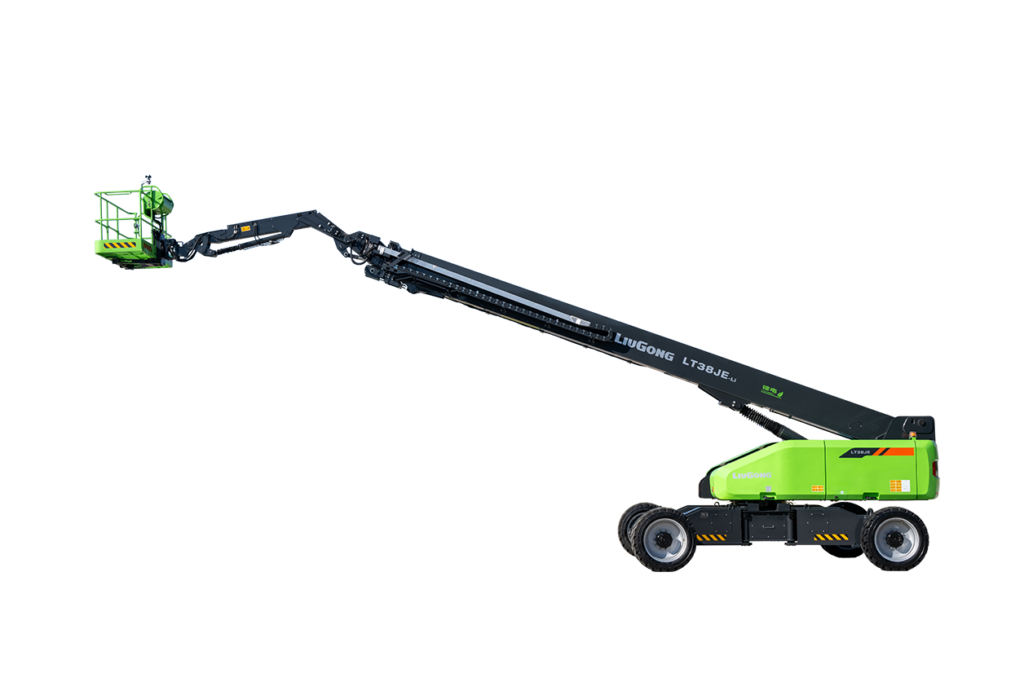

LT38JE
LT38JE
40.35 mWorking Height
38.35 mPlatform Height
23.75 mOperating Range
83.2V / 608AhBattery
16 × 2.49 mOverall L × W
Enquire
Diesel Telescopic Boom Lifts
Diesel

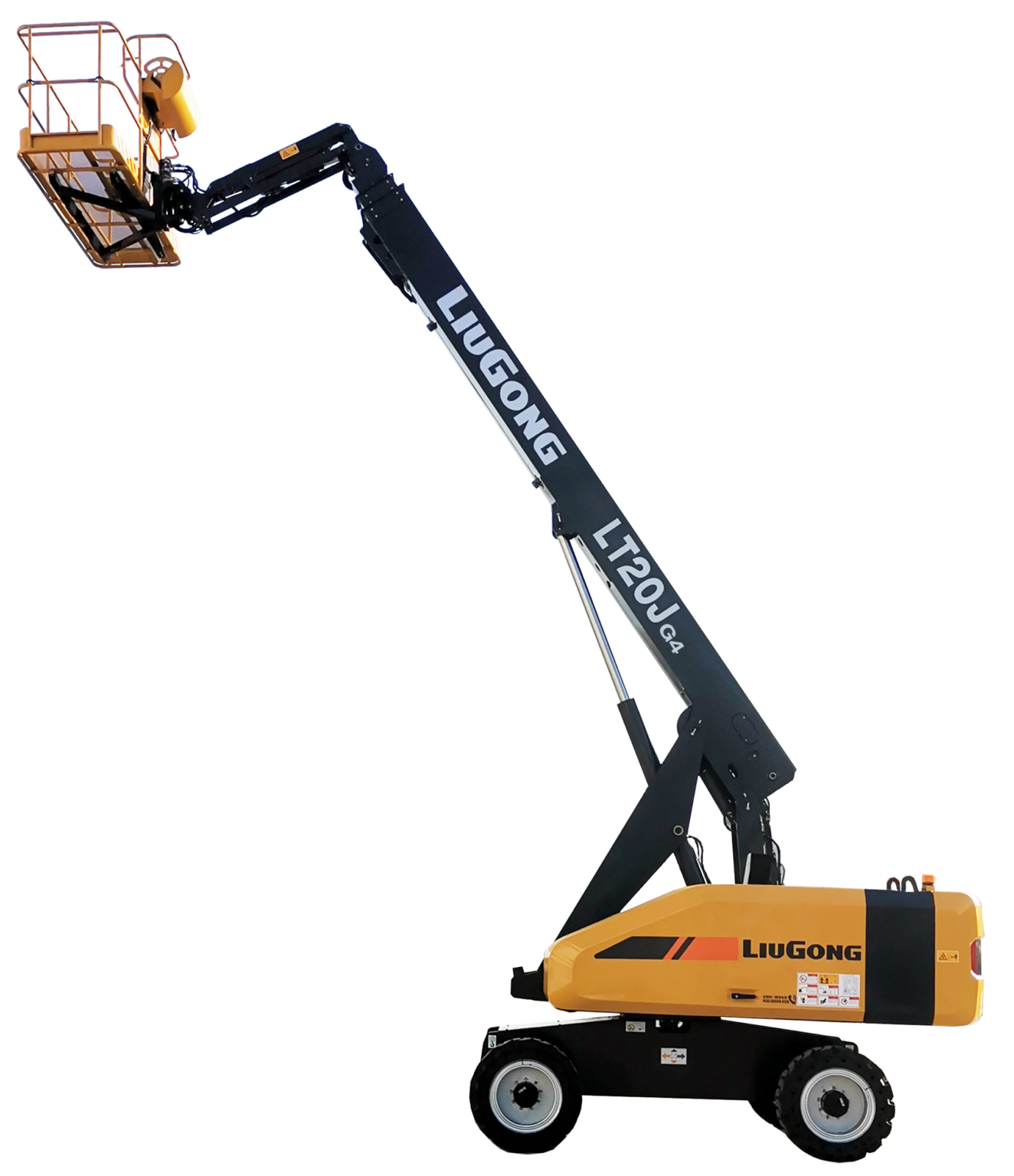

LT20J
LT20J
22 mWorking Height
20 mPlatform Height
17.8 mOperating Range
36.5 kWRated Power
9.7 × 2.49 mOverall L × W
Enquire

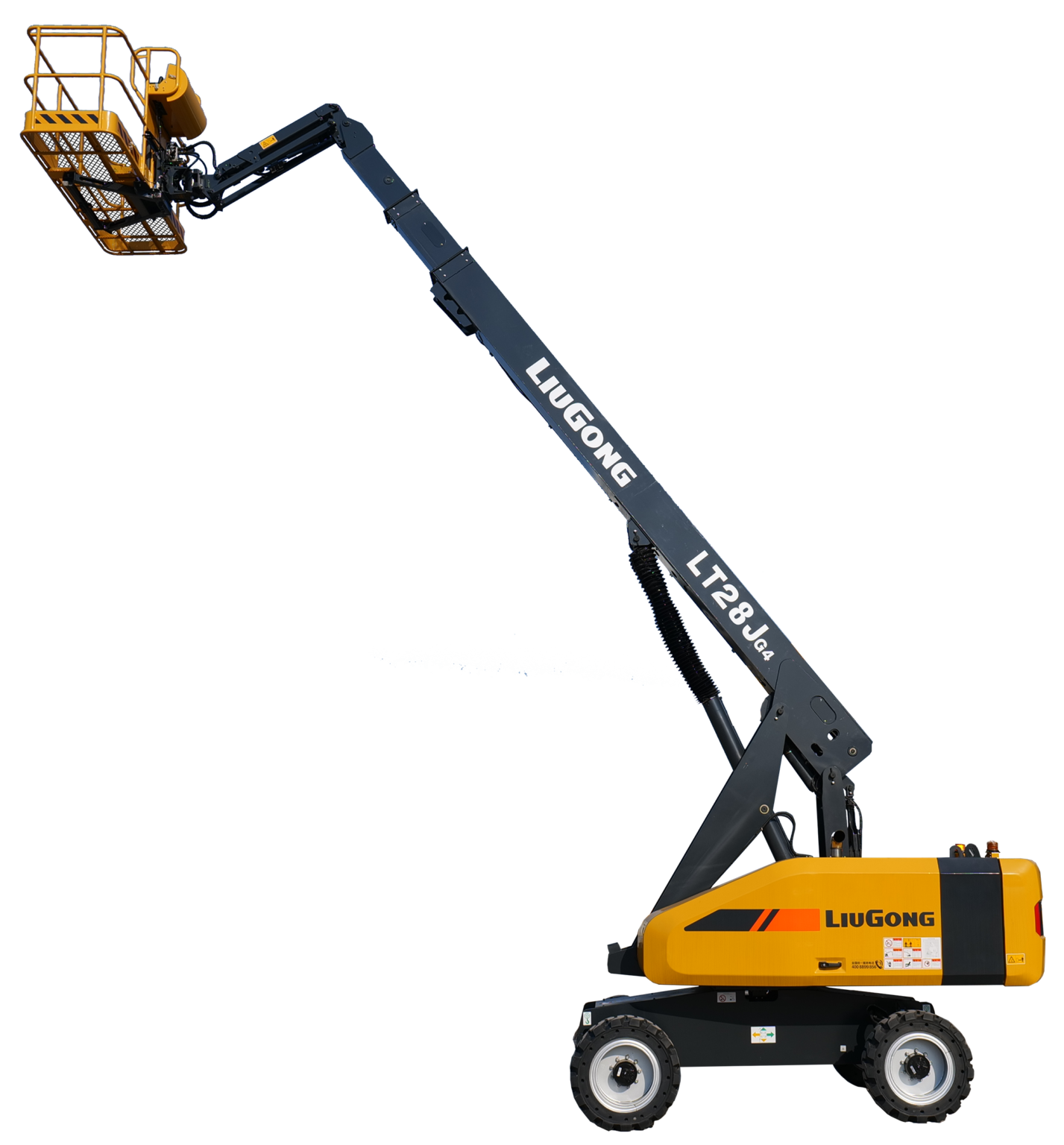

LT28J
LT28J
30 mWorking Height
28 mPlatform Height
22.9 mOperating Range
55 kWRated Power
13.3 × 2.49 mOverall L × W
Enquire

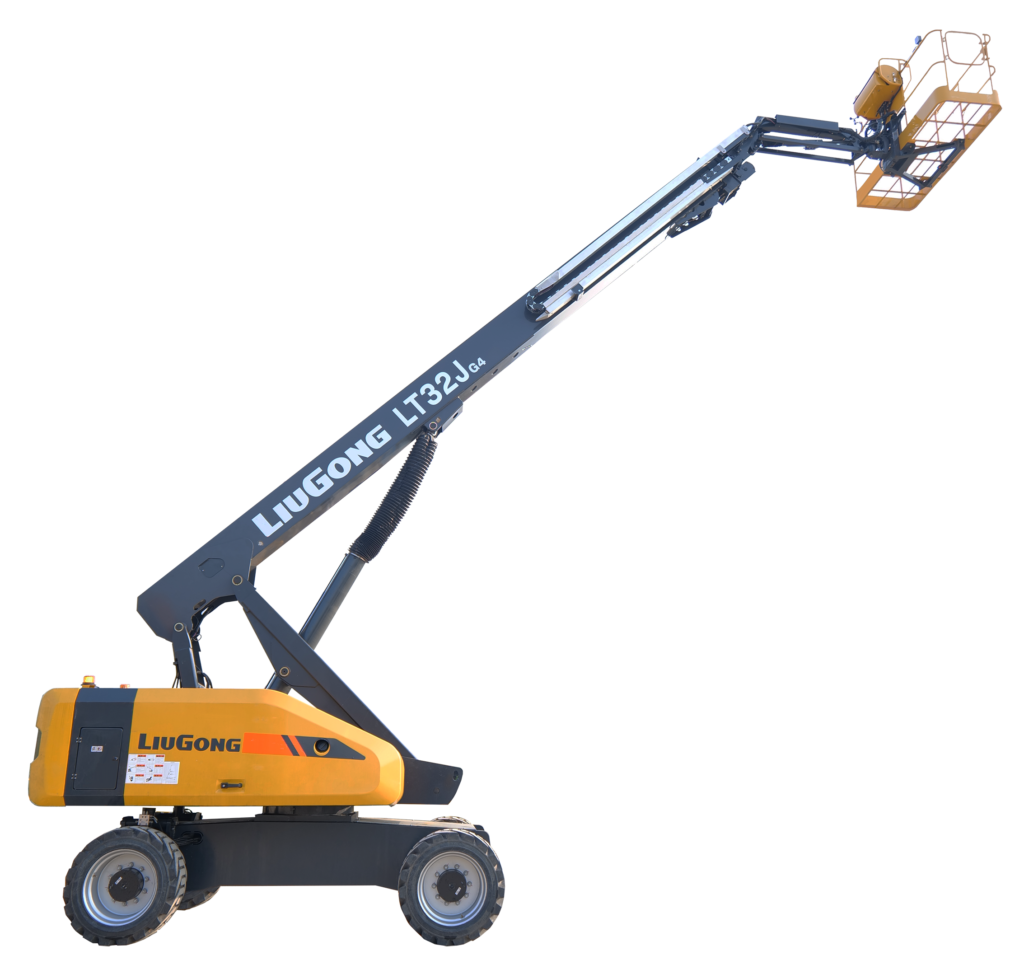

LT32J
LT32J
34.2 mWorking Height
32.2 mPlatform Height
20.9 mOperating Range
55.8 kWRated Power
12.8 × 2.49 mOverall L × W
Enquire

Exceptional Height & Reach

  • Working heights from 18.2 m (LT16JE) up to 40.35 m (LT38JE) across the electric range
  • Diesel models reach up to 34.2 m working height — ideal for large outdoor structures
  • Maximum horizontal operating range up to 23.75 m for broad coverage from a fixed position
  • Straight-line boom extension provides a stable, direct path to the work area
  • Platform heights from 16.2 m to 38.35 m to accommodate a wide variety of tasks

Electric Models — Clean & Efficient

  • Zero-emission lithium-ion battery operation — suitable for indoor, enclosed, and urban sites
  • Battery voltages across the range: 51.2 V (entry models), 48 V (mid range), 83.2 V (heavy duty)
  • High-capacity batteries up to 608 Ah on the LT38JE for extended shift operation
  • Low noise and low vibration for improved operator comfort and reduced site disturbance
  • Minimal maintenance requirements compared to diesel alternatives

Diesel Models — Outdoor Power

  • Robust diesel engines rated from 36.5 kW (LT20J) to 55.8 kW (LT32J) for demanding outdoor use
  • Engineered for rough terrain with four-wheel drive and oscillating axle as standard
  • Ideal for construction sites, ports, open yards, and locations without reliable power supply
  • Proven durability under continuous heavy-duty operating conditions

Safety & Operator Comfort

  • Spacious platform with full guardrails and a self-closing safety gate
  • Proportional controls for smooth, precise boom extension and drive movements
  • Automatic load-sensing system prevents operation beyond rated capacity
  • Ground-level emergency lowering for safe recovery in all situations
  • Tilt alarm and automatic levelling system for stable operation on uneven ground

Whether your project demands the clean efficiency of an electric powertrain or the rugged capability of a diesel engine, LiuGong Telescopic Boom Lifts are engineered to deliver safe, reliable, and productive access at height. Contact us to find the right model for your application.

Enquire Now
